We are thrilled to showcase our recently completed residential project in Brisbane! This modern 278 sqm steel-structure residence seamlessly integrates refined contemporary aesthetics with high-performance fenestration systems—tailored specifically for Queensland’s sunny coastal climate.
To deliver optimal ventilation, structural durability, and effortless indoor-outdoor flow, we customized a comprehensive fenestration system package:

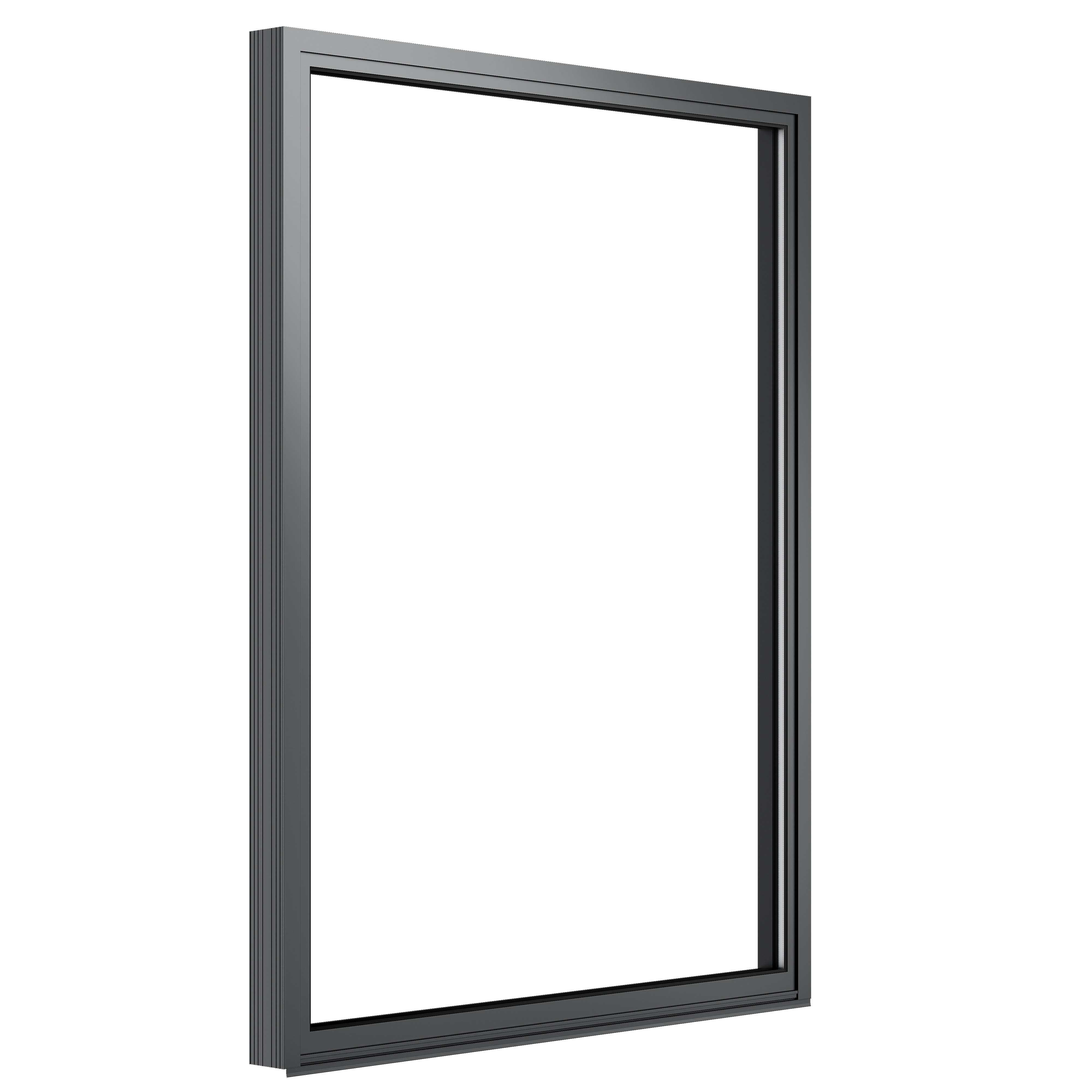

1. 50 Non-Thermal Break Fixed Windows
Profile Thickness: 1.4 mm
Glass Spec: 5mm+9A+5mm double clear tempered glass (standard upgrade to 6+12A+6)
Features: 45° corner cleat with glue injection for robust structural stability and crisp visual geometry. Heavy-duty stainless steel load-bearing hardware ensures prolonged operations without deformation.

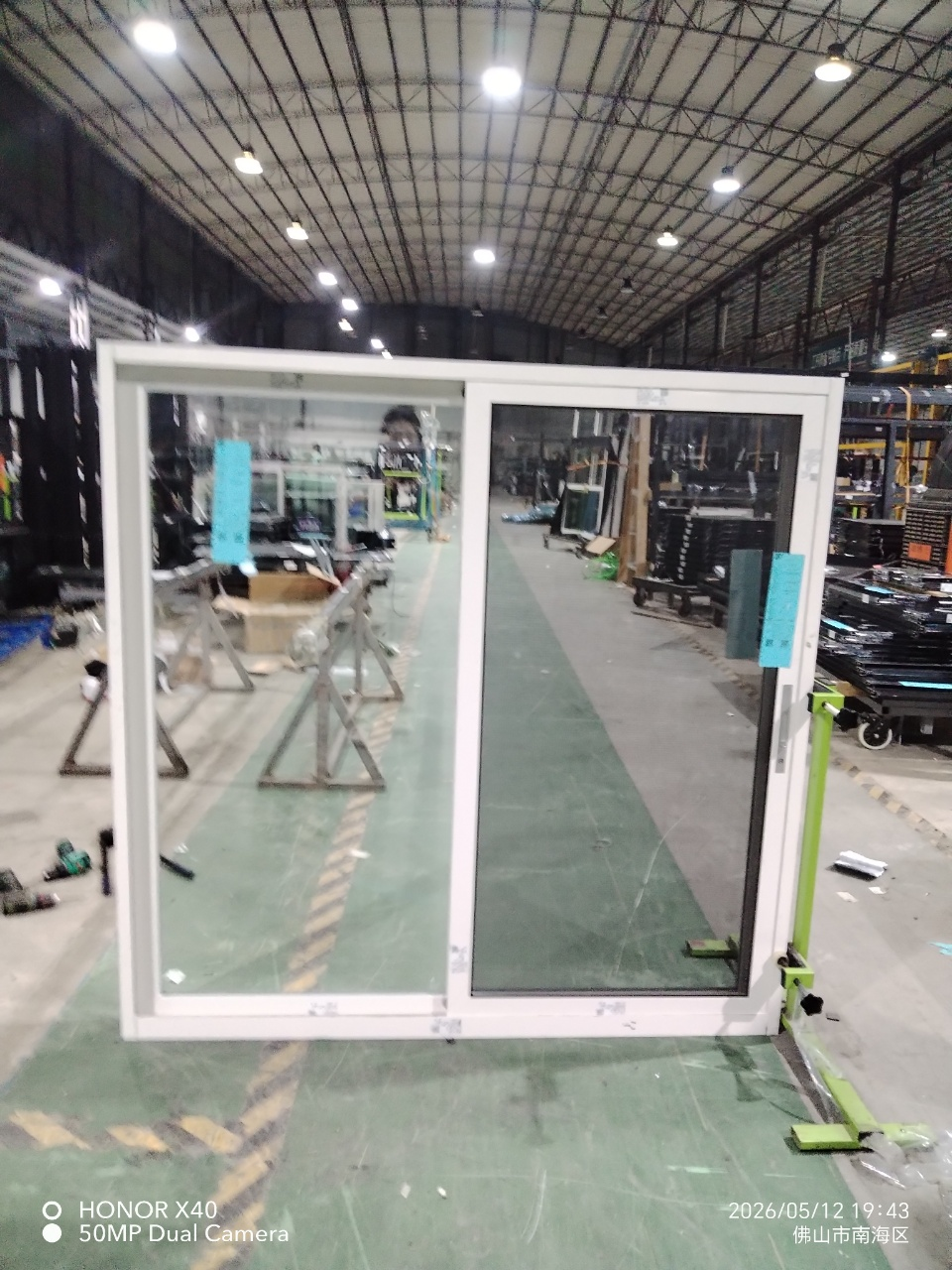

2. 100 Non-Thermal Break Sliding Windows
Profile Thickness: Heavy-duty 2.0 mm structural aluminum profile
Glass Standard: Double clear tempered hollow glass (5+9A+5 / 6+9A+6)
Hardware & Mesh: ZEKIN precision hardware and 0.4 mm Diamond Net screen
Installation System: Compatible with timber framing and aluminum sub-profile systems

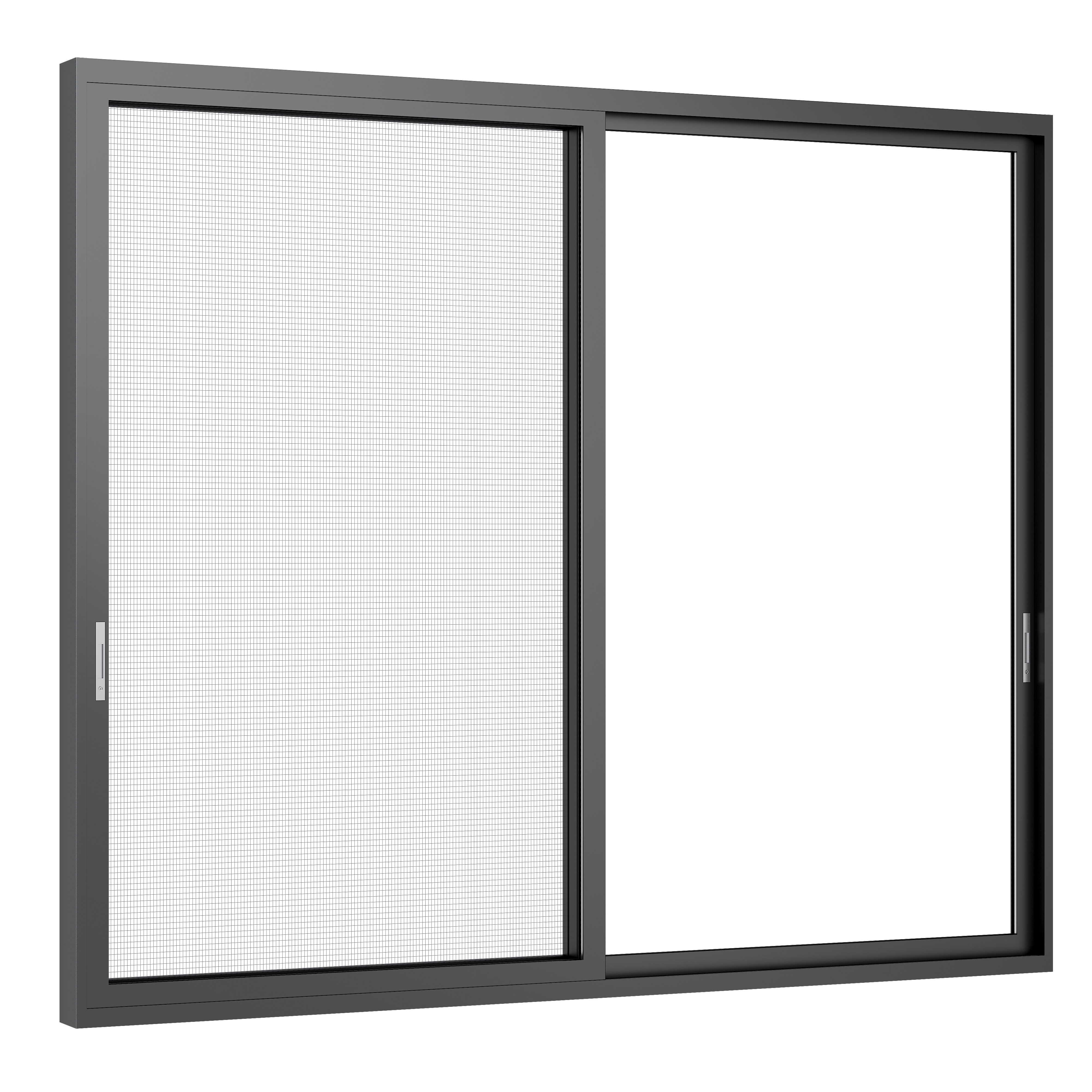

3. Australian 100 Triple-Track Sliding Doors
Profile Thickness: Robust 2.0 mm aluminum profile
Glass Standard: Double clear tempered hollow glass (5+9A+5 / 6+9A+6)
Hardware & Mesh: ZEKIN heavy-duty sliding hardware and 0.4 mm Diamond Net screen
Advantage: The triple-track design allows maximum clear opening width so indoor living areas seamlessly connect with outdoor patios.

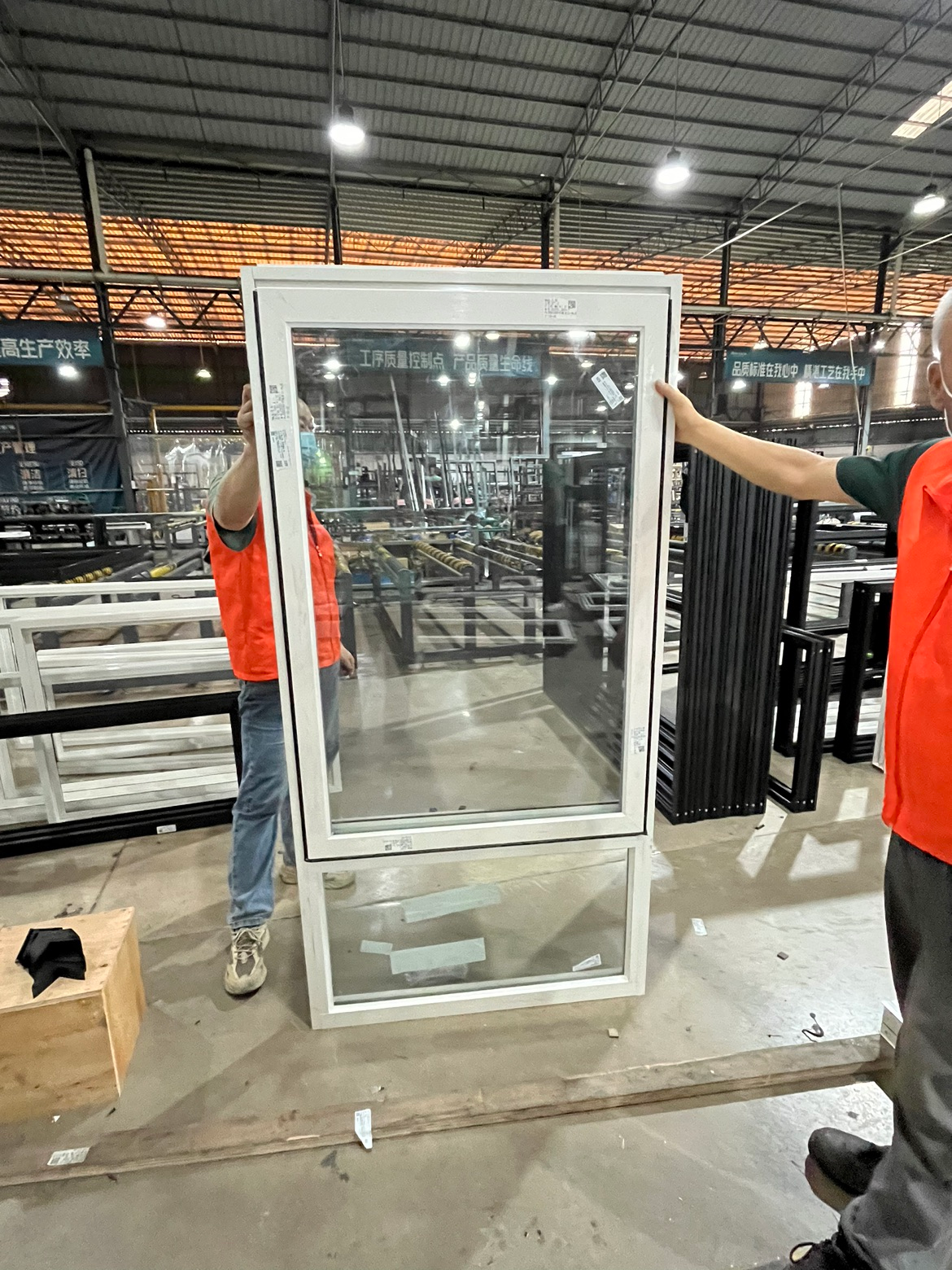

4. Australian 85 Thermal Break Awning Windows
Insulation: Thermal Break technology for superior thermal efficiency and energy retention
Profile Thickness: 1.4 mm (but key load-bearing sections are reinforced to 2.8 mm)
Features: A smooth hand-crank operator allows precise ventilation control and keeps rain out during inclement weather. Flexible screen configurations.

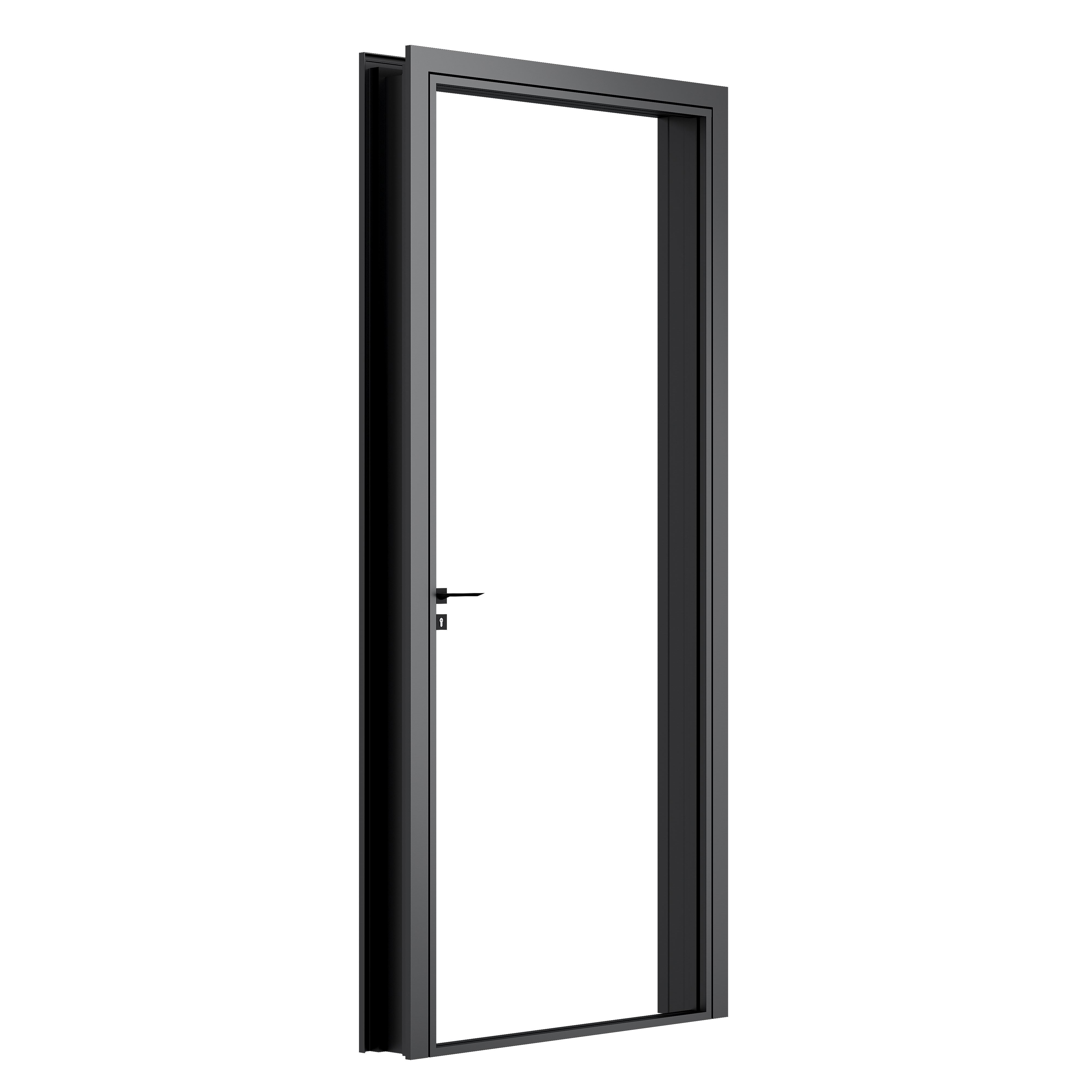

5. 50-Series Casement Door (Non-Thermal Break)
Profile Thickness: 1.4 mm
Glass Specification: 5mm+9A+5mm double clear tempered glass (standard upgrade to 6+12A+6)
Features: 45° corner cleat with glue injection for robust structural stability and crisp visual geometry. Heavy-duty stainless steel load-bearing hardware ensures prolonged operations without deformation.
Site Integration
