Let’s check out this private residential project over in Melbourne, Australia. Right from day one, the owner was obsessed with the details. The main request? Windows that matched the clean, sharp lines of the architecture perfectly. No exceptions.
These windows had to do some serious heavy lifting with thermal control, airtightness, and wind resistance. In the end, ZEKIN aluminum windows were pretty much a no-brainer for the house.
Project Scope
Location: Melbourne, Australia
Property Size: Private Residential Project
Building Type: Modern Clean Architecture
Core Challenge: Accommodating expansive, custom-sized layouts while maintaining superior thermal efficiency and coastal durability.

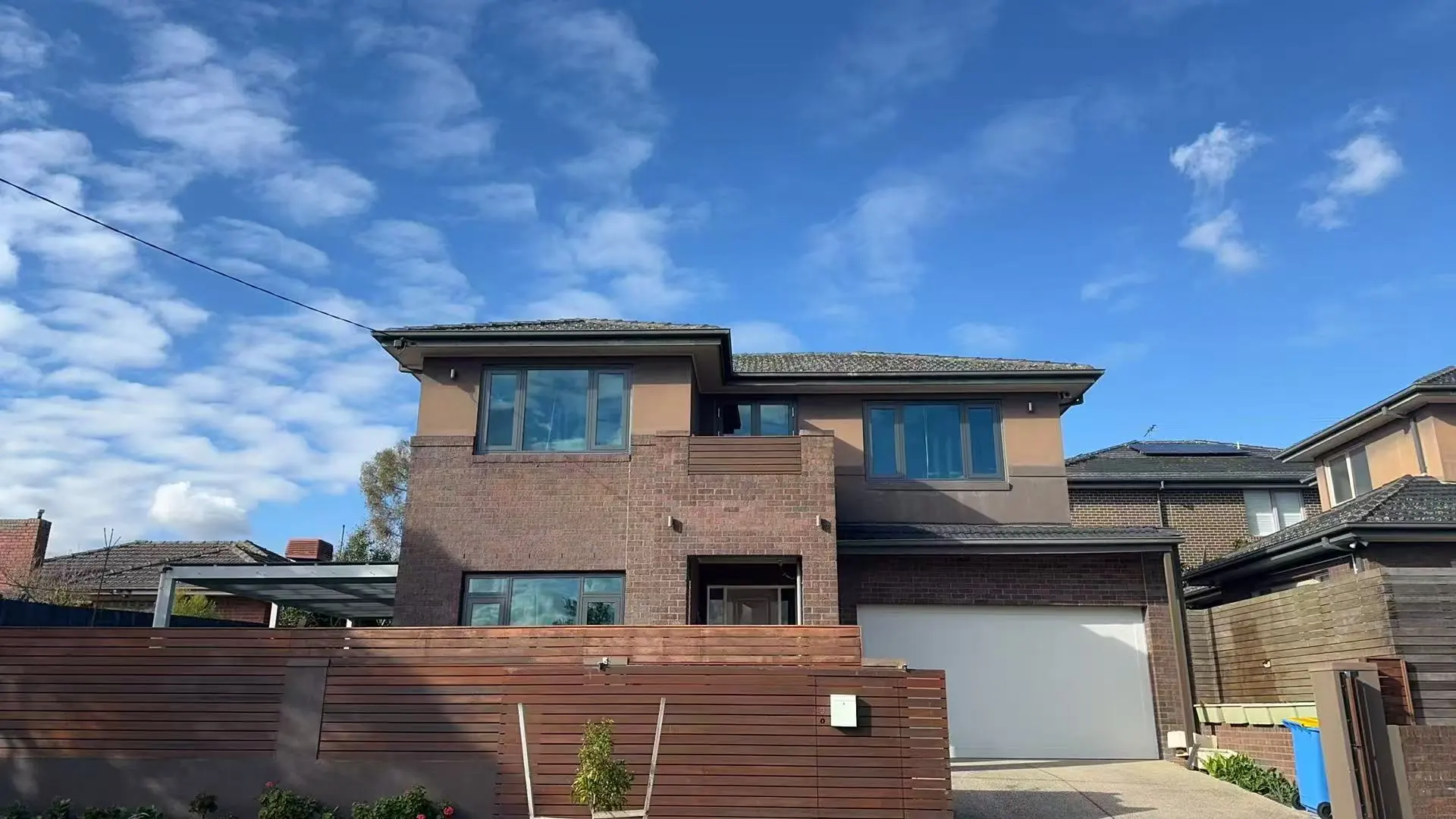

1. 50 Non-Thermal Break Fixed Windows
Profile Thickness: 1.4 mm
Glass Spec: 5mm+9A+5mm double clear tempered glass (standard upgrade to 6+12A+6)
Features: 45° corner cleat with glue injection for robust structural stability and crisp visual geometry. Heavy-duty stainless steel load-bearing hardware ensures prolonged operations without deformation.

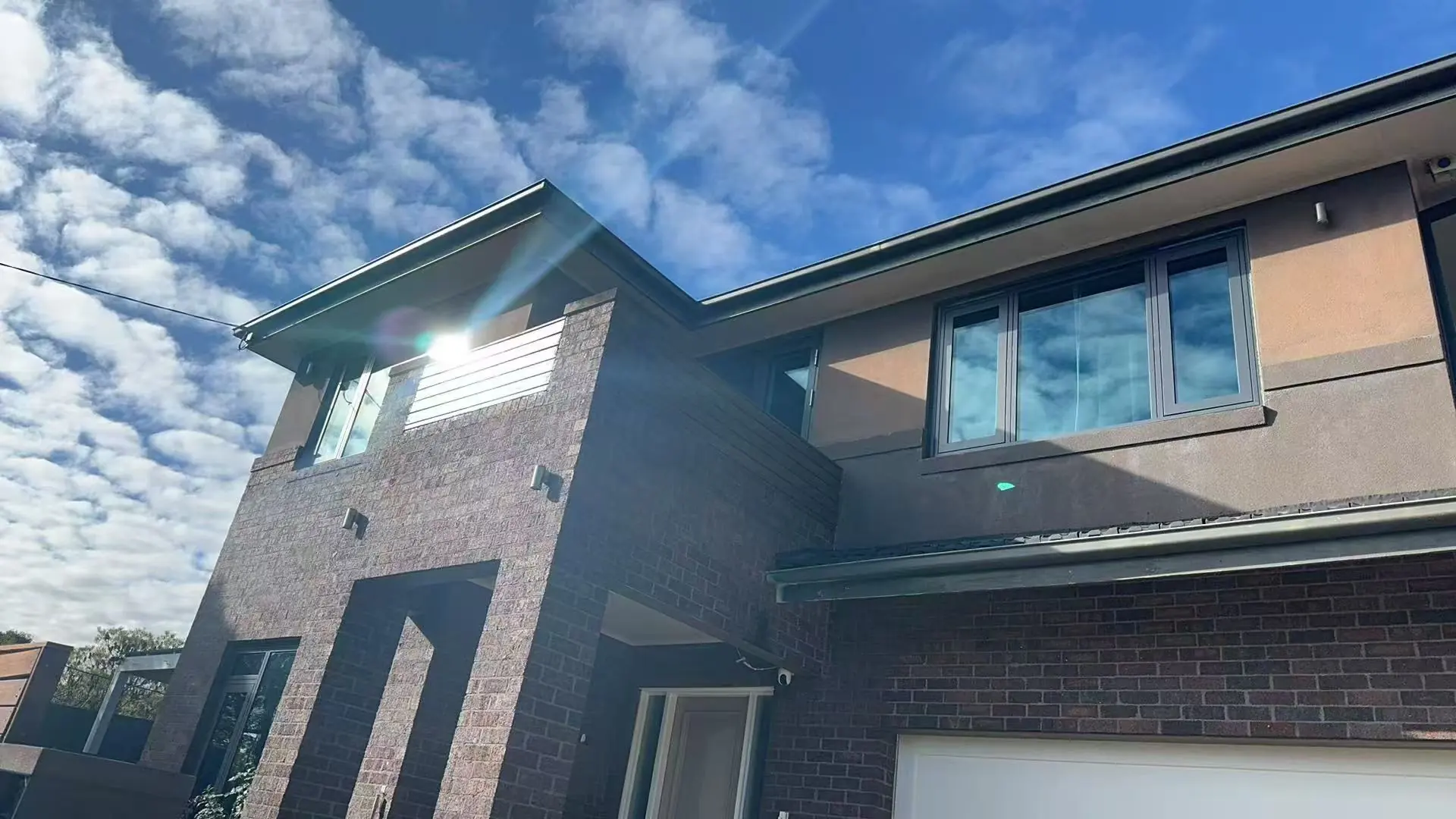

2. 100 Non-Thermal Break Sliding Windows
Profile Thickness: Heavy-duty 2.0 mm structural aluminum profile
Glass Standard: Double clear tempered hollow glass (5+9A+5 / 6+9A+6)
Hardware & Mesh: ZEKIN precision hardware and 0.4 mm Diamond Net screen
Installation System: Compatible with timber framing and aluminum sub-profile systems
3. Australian 100 Triple-Track Sliding Doors
Profile Thickness: Robust 2.0 mm aluminum profile
Glass Standard: Double clear tempered hollow glass (5+9A+5 / 6+9A+6)
Hardware & Mesh: ZEKIN heavy-duty sliding hardware and 0.4 mm Diamond Net screen
Advantage: The triple-track design allows maximum clear opening width so indoor living areas seamlessly connect with outdoor patios.
4. Australian 85 Thermal Break Awning Windows
Insulation: Thermal Break technology for superior energy retention
Profile Thickness: 1.4 mm (key load-bearing sections reinforced to 2.8 mm)
Features: Smooth hand-crank operator allows precise ventilation control and keeps rain out. Flexible screen configurations.
