This project is located in a residential area in the United States. The client wanted to incorporate larger glass areas while maintaining security and energy efficiency, allowing for better natural light and expansive views indoors.

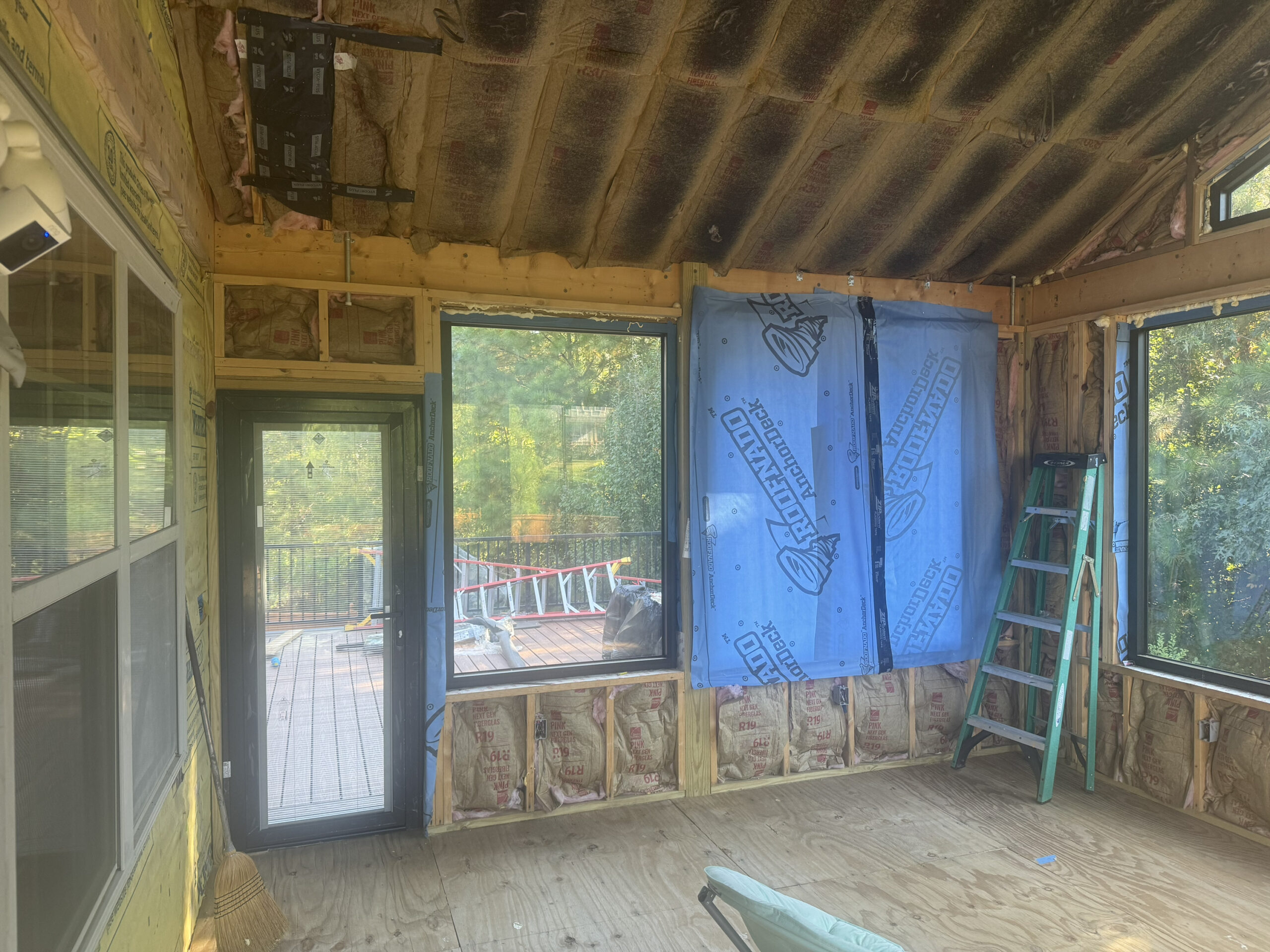

After comparing various options, the client ultimately chose our window and door products. The project utilizes a large-scale aluminum alloy window system, featuring clean and sleek lines, and complemented by black window frames, creating a highly modern aesthetic.
Project Scope
Location: United States
Property Size: Residential Renovation
Building Type: Modern Aluminum Windows
Core Challenge: Accommodating expansive, custom-sized layouts while maintaining superior thermal efficiency and coastal durability.

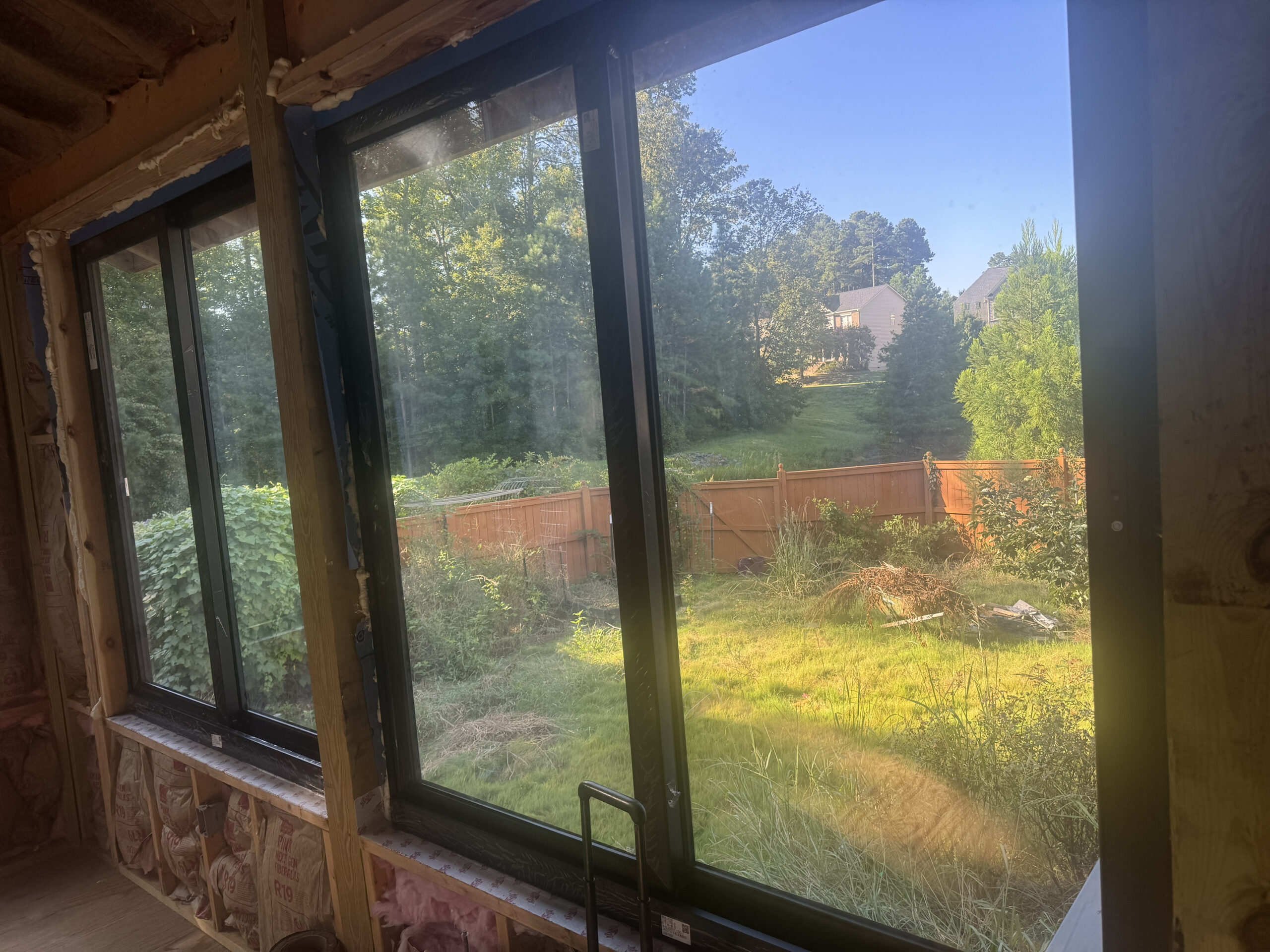

1. 50 Non-Thermal Break Fixed Windows
Profile Thickness: 1.4 mm
Glass Spec: 5mm+9A+5mm double clear tempered glass (standard upgrade to 6+12A+6)
Features: 45° corner cleat with glue injection for robust structural stability and crisp visual geometry. Heavy-duty stainless steel load-bearing hardware ensures prolonged operations without deformation.

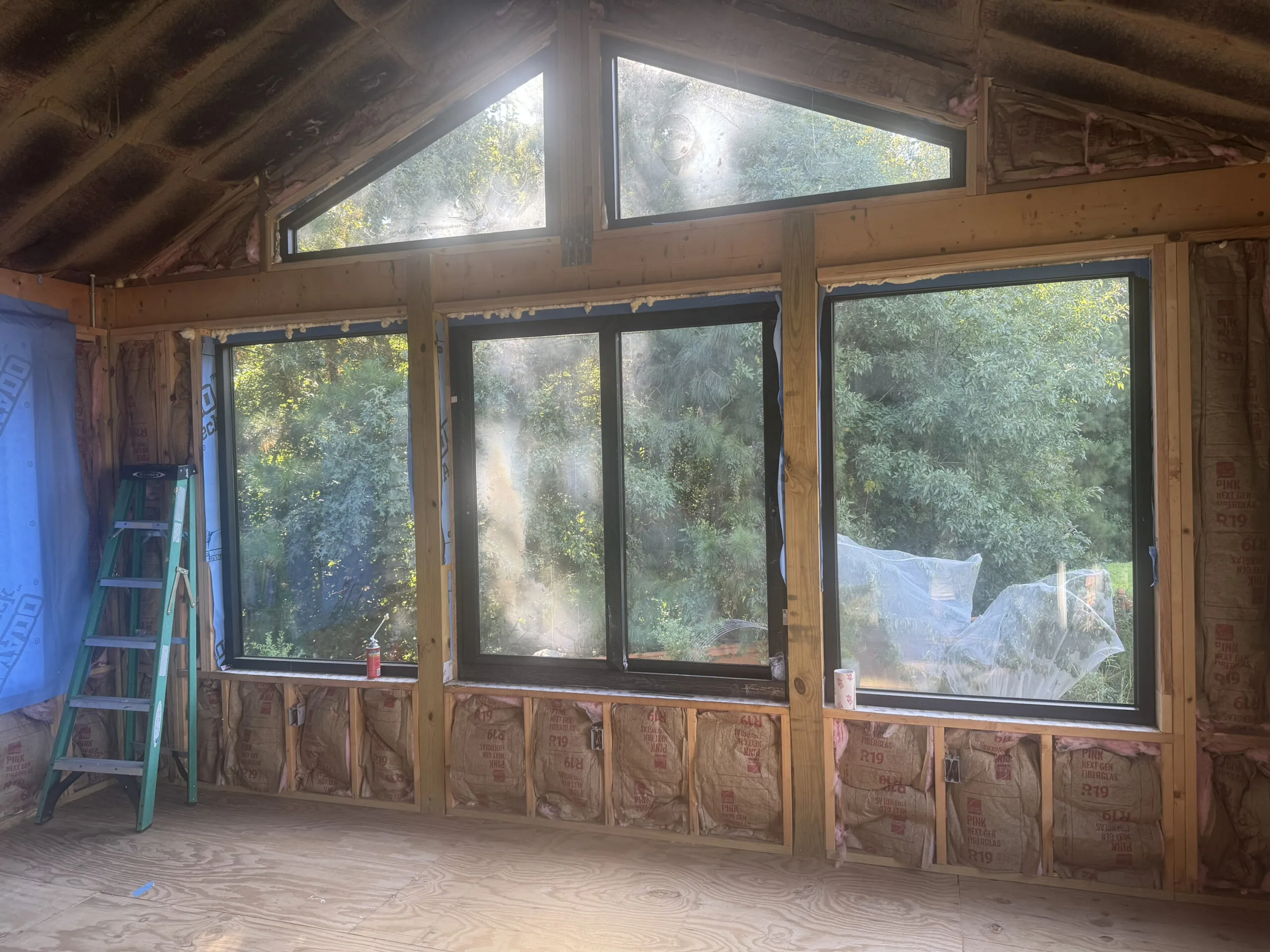

2. 100 Non-Thermal Break Sliding Windows
Profile Thickness: Heavy-duty 2.0 mm structural aluminum profile
Glass Standard: Double clear tempered hollow glass (5+9A+5 / 6+9A+6)
Hardware & Mesh: ZEKIN precision hardware and 0.4 mm Diamond Net screen
Installation System: Compatible with timber framing and aluminum sub-profile systems
3. Australian 100 Triple-Track Sliding Doors
Profile Thickness: Robust 2.0 mm aluminum profile
Glass Standard: Double clear tempered hollow glass (5+9A+5 / 6+9A+6)
Hardware & Mesh: ZEKIN heavy-duty sliding hardware and 0.4 mm Diamond Net screen
Advantage: The triple-track design allows maximum clear opening width so indoor living areas seamlessly connect with outdoor patios.
4. Australian 85 Thermal Break Awning Windows
Insulation: Thermal Break technology for superior energy retention
Profile Thickness: 1.4 mm (key load-bearing sections reinforced to 2.8 mm)
Features: Smooth hand-crank operator allows precise ventilation control and keeps rain out. Flexible screen configurations.
