This 220m² luxury residence in Brighton features a comprehensive new construction window installation. Our objective was to integrate the 100 Series system into a modern architectural layout, moving beyond regular window sizes to accommodate the villa’s expansive, custom design requirements.
To deliver optimal ventilation and structural durability, we focused on the exact fit against traditional red brickwork. Precision was critical during the "lock-up" stage, verifying all window measurements to ensure the units were perfectly leveled within the timber studs.
Project Scope
Location: Brighton, Melbourne (VIC 3186)
Property Size: 220 sqm Luxury Residence
Building Type: Modern Residential Villa & Traditional Brickwork
Core Challenge: Accommodating expansive, custom-sized layouts while maintaining superior thermal efficiency and coastal durability.

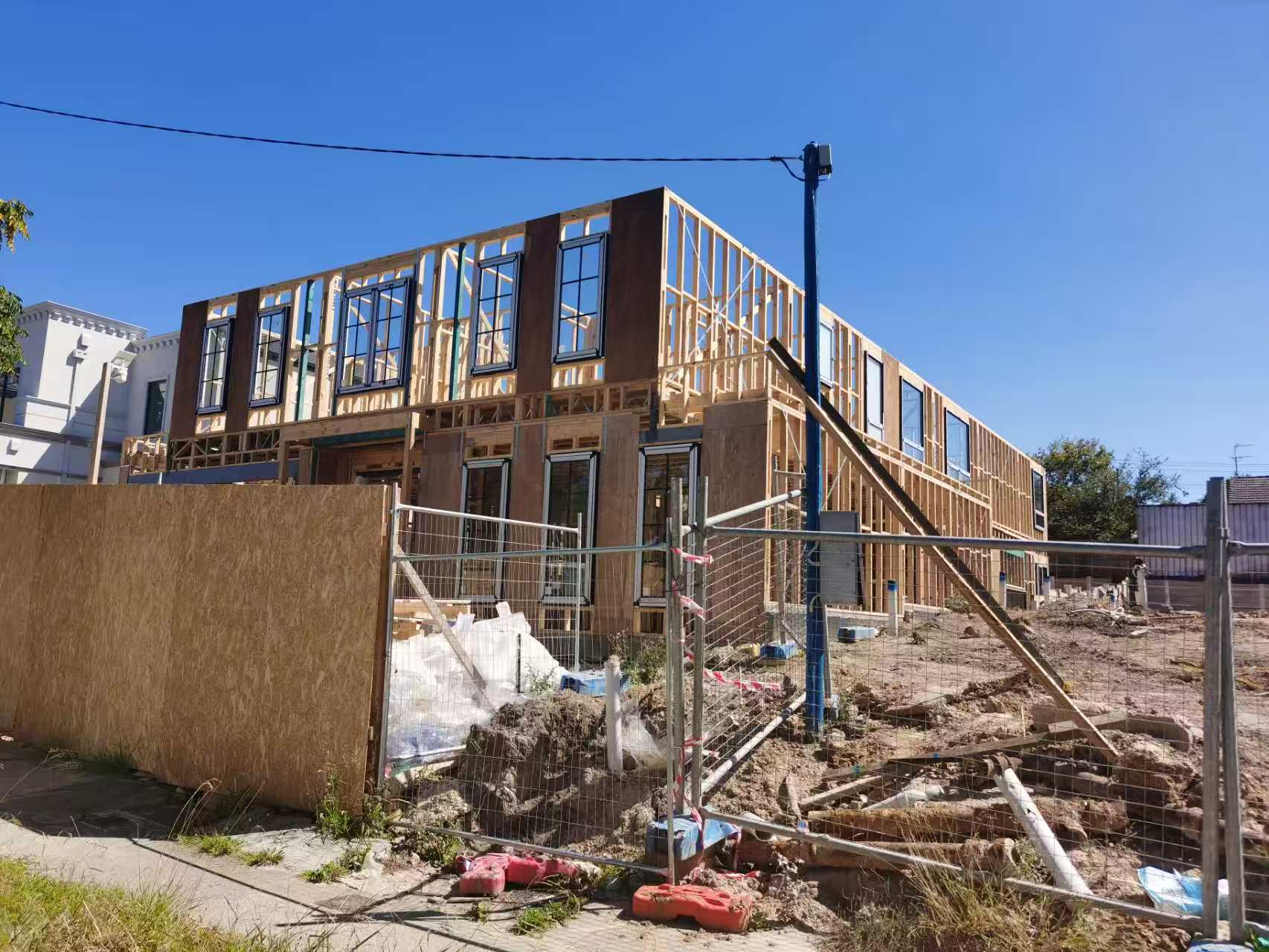

1. 50 Non-Thermal Break Fixed Windows
Profile Thickness: 1.4 mm
Glass Spec: 5mm+9A+5mm double clear tempered glass (standard upgrade to 6+12A+6)
Features: 45° corner cleat with glue injection for robust structural stability and crisp visual geometry. Heavy-duty stainless steel load-bearing hardware ensures prolonged operations without deformation.

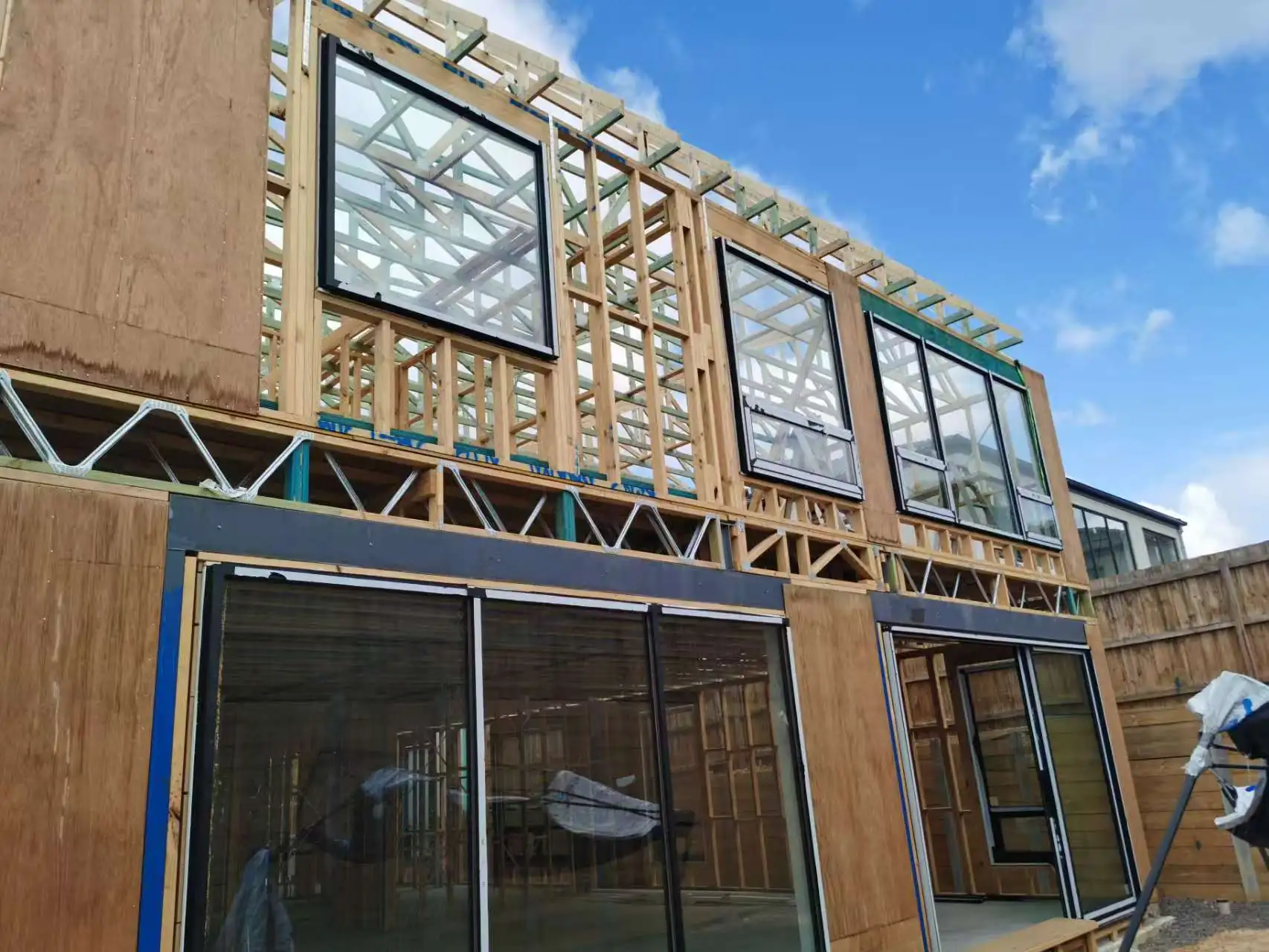

2. 100 Non-Thermal Break Sliding Windows
Profile Thickness: Heavy-duty 2.0 mm structural aluminum profile
Glass Standard: Double clear tempered hollow glass (5+9A+5 / 6+9A+6)
Hardware & Mesh: ZEKIN precision hardware and 0.4 mm Diamond Net screen
Installation System: Compatible with timber framing and aluminum sub-profile systems

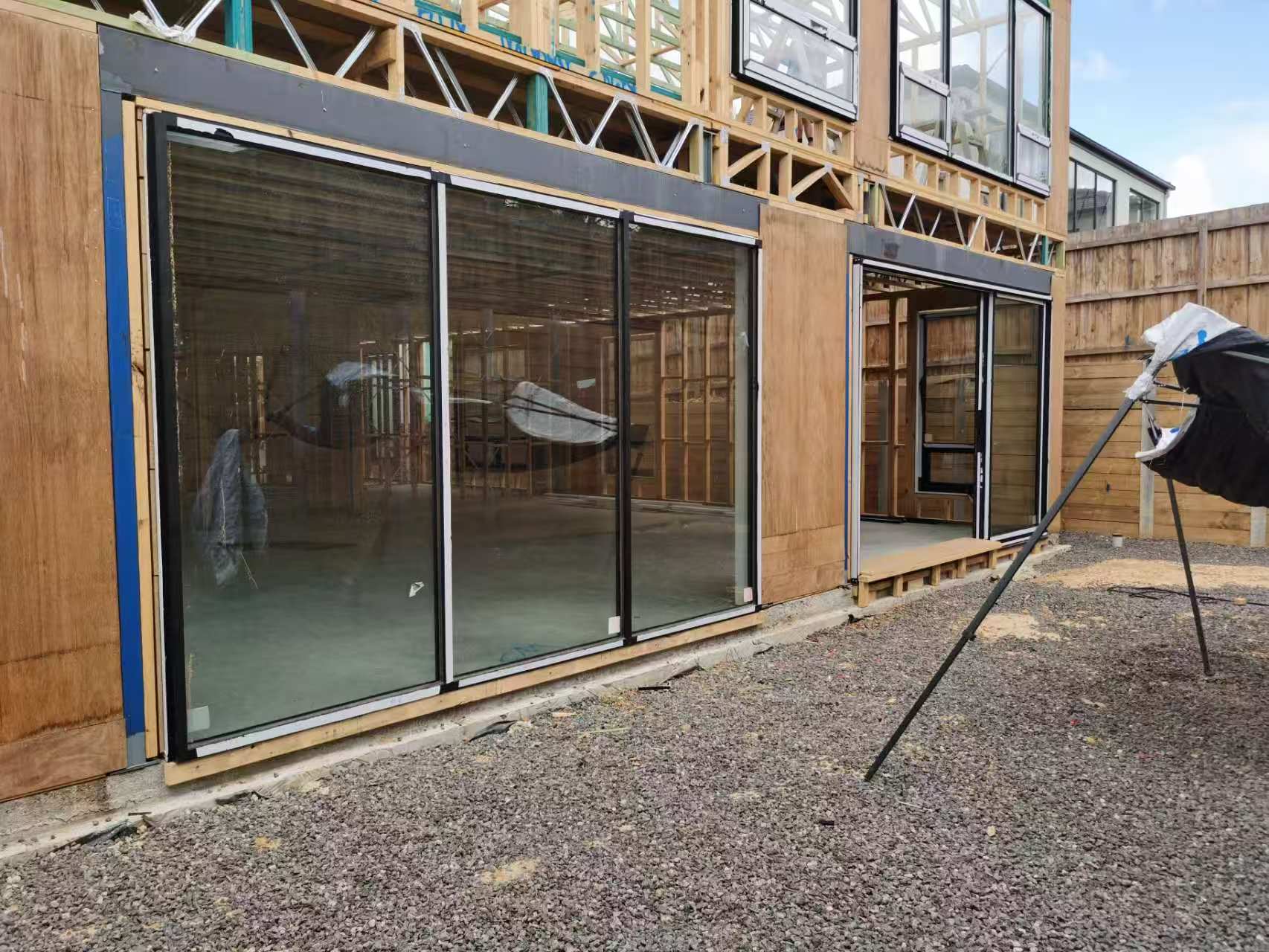

3. Australian 100 Triple-Track Sliding Doors
Profile Thickness: Robust 2.0 mm aluminum profile
Glass Standard: Double clear tempered hollow glass (5+9A+5 / 6+9A+6)
Hardware & Mesh: ZEKIN heavy-duty sliding hardware and 0.4 mm Diamond Net screen
Advantage: The triple-track design allows maximum clear opening width so indoor living areas seamlessly connect with outdoor patios.

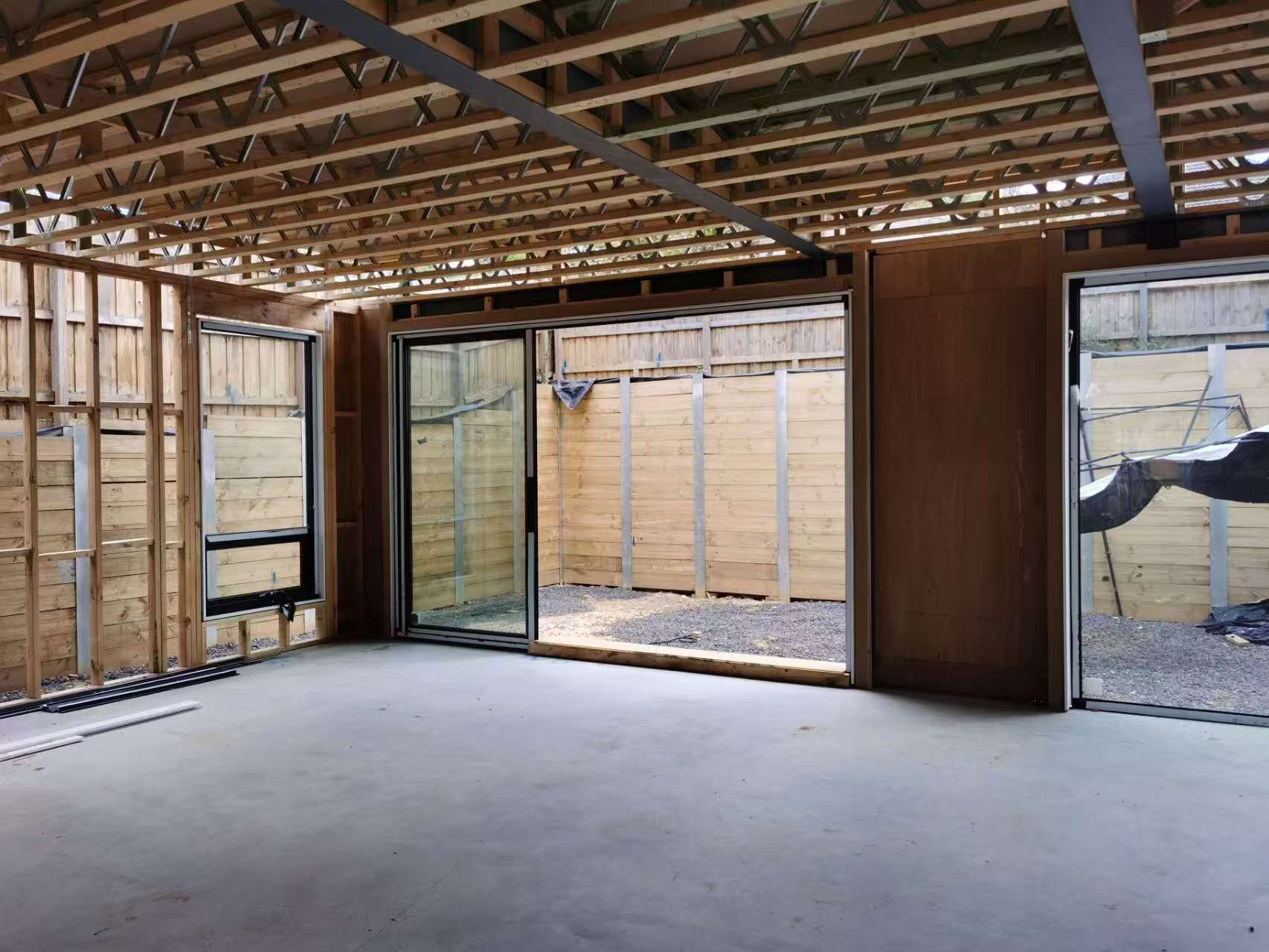

4. Australian 85 Thermal Break Awning Windows
Insulation: Thermal Break technology for superior energy retention
Profile Thickness: 1.4 mm (key load-bearing sections reinforced to 2.8 mm)
Features: Smooth hand-crank operator allows precise ventilation control and keeps rain out. Flexible screen configurations.
